▷ Part numbers and Specifications
Nominal
Diameter
(㎜)
Part No. Resistance
at 25℃
(Ω)
R.Tolerance
(%)
Beta
Constant
(K,25/ 85℃)
Rated
Power at
25℃(㎽)
Dissipation
Constant
(㎽/℃)
Time
Constant
(Sec.)
Max
Operating
Temp. (℃)
2 102 2 1,000 1, 2, 3, 5, 10 3500 100 2.0 8 120
202 2 2,000 1, 2, 3, 5, 10 3550 100 2.0 8 120
2,000 1, 2, 3, 5, 10 3620 100 2.0 8 120
302 2 3,000 1, 2, 3, 5, 10 3750 100 2.0 8 120
402 2 4,000 1, 2, 3, 5, 10 3800 100 2.0 8 120
472 2 4,700 1, 2, 3, 5, 10 3850 100 2.0 8 120
502 2 5,000 1, 2, 3, 5, 10 3850 100 2.0 8 120
5,000 1, 2, 3, 5, 10 3910 100 2.0 8 120
103 2 10,000 1, 2, 3, 5, 10 3435 100 2.0 8 120
10,000 1, 2, 3, 5, 10 3500 100 2.0 8 120
10,000 1, 2, 3, 5, 10 3950 100 2.0 8 120
123 2 12,000 1, 2, 3, 5, 10 3970 100 2.0 8 120
153 2 15,000 1, 2, 3, 5, 10 4000 100 2.0 8 120
203 2 20,000 1, 2, 3, 5, 10 4050 100 2.0 8 120
253 2 25,000 1, 2, 3, 5, 10 4050 100 2.0 8 120
303 2 30,000 1, 2, 3, 5, 10 4100 100 2.0 8 120
333 2 33,000 1, 2, 3, 5, 10 4100 100 2.0 8 120
473 2 47,000 1, 2, 3, 5, 10 4150 100 2.0 8 120
503 2 50,000 1, 2, 3, 5, 10 4200 100 2.0 8 120
683 2 68,000 1, 2, 3, 5, 10 4200 100 2.0 8 120
104 2 100,000 1, 2, 3, 5, 10 4350 100 2.0 8 120
154 2 150,000 1, 2, 3, 5, 10 4400 100 2.0 8 120
204 2 200,000 1, 2, 3, 5, 10 4500 100 2.0 8 120
224 2 220,000 1, 2, 3, 5, 10 4500 100 2.0 8 120
404 2 400,000 1, 2, 3, 5, 10 4750 100 2.0 8 120
= R. tolerance : F (±1%), G (±2%), H (±3%), J (±5%), K (±10%)

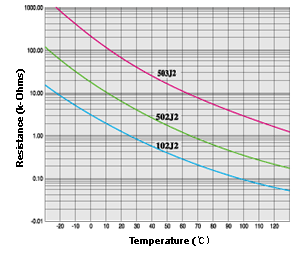

▷ Resistance - Temperature Graph ▷ Dimensions


unit:mm
